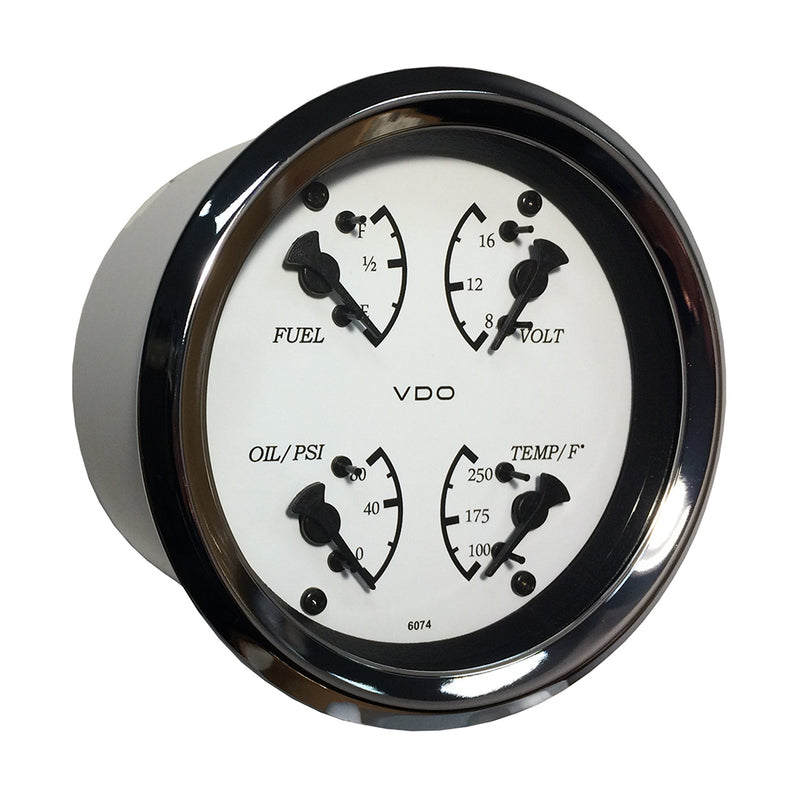

VDO Cockpit Marine 85mm (3-3/8") 4 in 1 Gauge - White Dial/Bezel [110-15800]

Cockpit Marine 85mm (3-3/8") 4 in 1 Gauge - White Dial/Bezel

Displays - Oil Pressure, Water Temp (F°), Fuel Level, Voltmeter

VDO Cockpit Marine offers a comprehensive modular, modern series of instruments for engine monitoring. More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability.

As the result of ongoing research and development work, VDO Cockpit Marine gauges offer an innovative, comprehensive standard instrumentation platform.  VDO Cockpit Marine gauges provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.

Features:

• Uses most common marine oil pressure, water temperature and fuel senders
• Oil pressure 0 to 80 PSI - 240-33 Ohm 80PSI oil pressure senders
• Water Temp. 100 to 250°F - 450-29 Ohm 240F/250F marine temperature senders
• Fuel level - E to F - 240-33 Ohm fuel level senders
• Voltmeter 8 to 16 VDC
• Uses common 3/16"" (4mm) electrical ring terminal connectors
• Fits common 3 3/8"" (85mm) dashboard holes

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gauge Type: Multifunction
• Voltage - Input Range (Volts): 8 to 16 VDC
• Gauge Size: 3-3/8"
• Box Set: No
• Series: Cockpit Marine
• Box Dimensions: 6"H x 6"W x 8"L WT: 0.85 lbs
• UPC: 754059093499
