Raymarine RVM-100 Transom Mount Transducer [A80703]
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

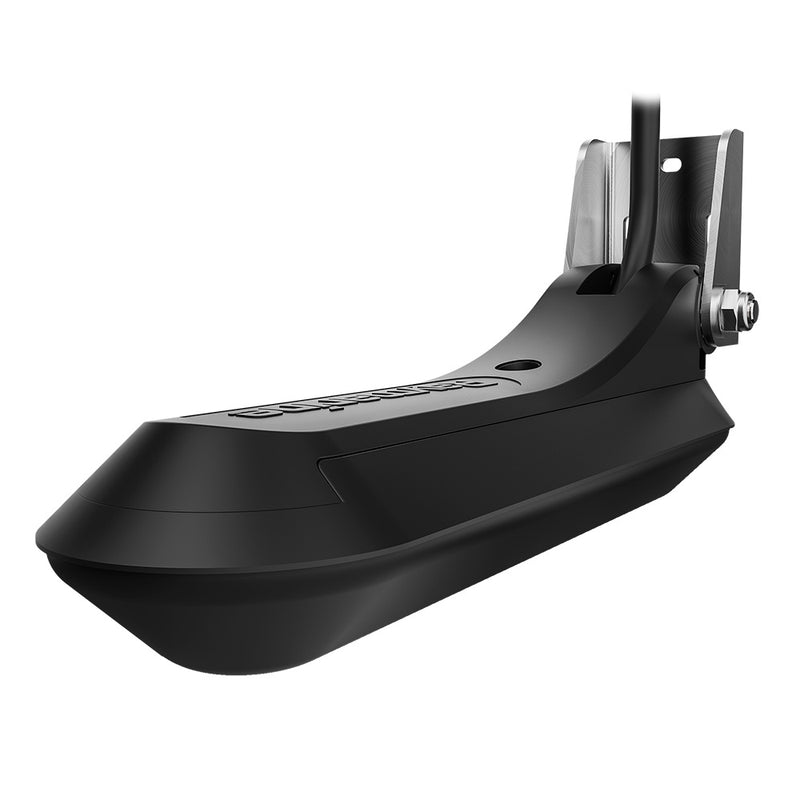

RVM-100 Transom Mount Transducer
RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters. The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available.
*Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module
Features:
- 600-Watt traditional CHIRP
- Designed for transom mounting on outboard boats
- Stainless Steel mounting bracket with an integrated kick-up feature
- 8M Cable
