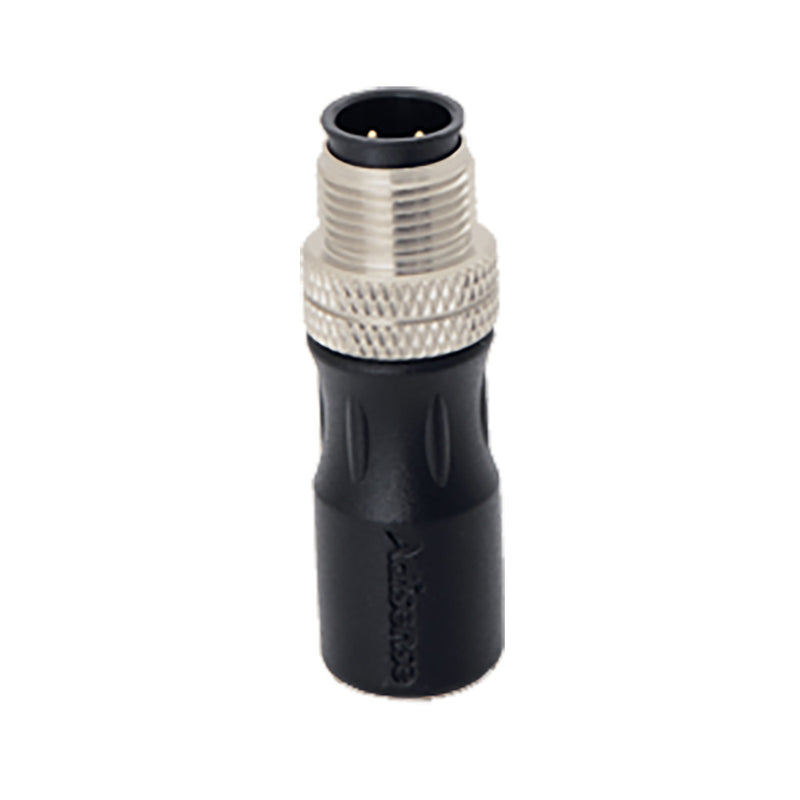

Actisense NMEA2000 Micro Terminator - Male [A2K-TER-M]
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
NMEA2000 Micro Terminator - Male
Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.
Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge
Technical Specifications:
Electrical
- Rated Voltage (power pair) - 60VDC
- Rated Current - 4A
- Internal Termination Resistors - 120 Ω ± 1% 500mW
Mechanical
- Male Contact - Brass, gold plated
- Contact Carrier - PA66 (30% Glass filled), black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, Black
- Housing - PVC, black
- Weight - 15g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -25°C to +70°C
- Storage Temperature - -40°C to +85°C
Specifications:
- Connection Gender: Male
- Data Interface: NMEA 2000
- NMEA 2000 Connectors: Terminators
- Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs
- UPC: 5060998710300
Owner's Manual (pdf)
Brochure (pdf)
