em-trak I100-X Small Vessel Tracker - Open Box - Never Programmed [417-0077-OB]
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
I100-X Small Vessel Tracker - Open Box - Never Programmed
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.**
Click here to download the form.

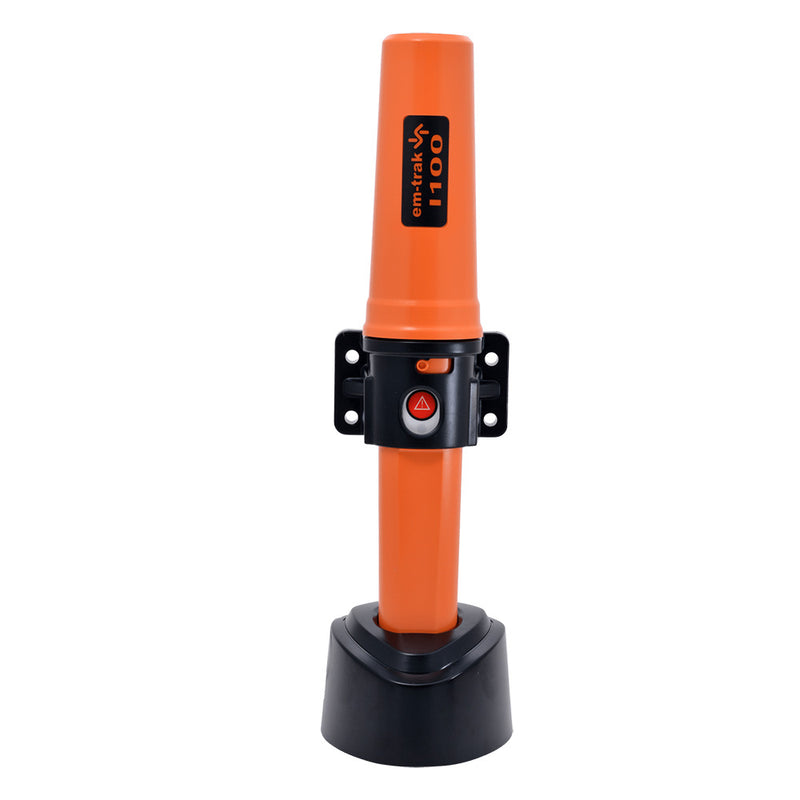

The Identifier I100-X is a rugged, fully self-contained AIS Class B vessel-tracking transponder, ideal for small-boat tracking and monitoring.
I100-X can power itself using its own internal rapid-recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source, such as an engine, battery, or solar, with the battery then acting as a backup.
I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.
Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.
Features:
- Certified AIS Class B Transponder
- 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation
- It takes only 5 hours to completely recharge
- Rugged IPX8 design ensures the operational performance
Physical & Environmental Specifications:
- Size (H x W): 370 x 67 mm
- Weight: 355g
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Ingress protection: IPx8 (1.1m 30 mins)
Electrical Specifications:
- Battery Capacity: 2300mAh
- Battery Type: 3.7V Li-Ion rechargeable
- Battery Life (default operating conditions): 120 hours
Standards Compliance:
- AIS Standards: IEC 62287-1 Ed. 3. ITU-R M.1371.5
- Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
- Environmental Standards: IEC 60945 Ed. 4
- GNSS Performance Standards: IEC 61108-1 Ed 2.0
GNSS:
- Systems Supported: GPS & GLONASS
- Channels: 72
- Time to First Fix from Cold Start: 26s
VHF Transceiver:
- VDL Access Scheme: CSTDMA
- Operating Frequency: 156.025MHz – 162.025MHz
- Channel Bandwidth: 25kHz
- Receivers / Transmitters: 1 x transmitter
- AIS Transmitter Power: 2W (33dBm radiated)
User Interface:
- Buttons: SOS
- Indicators: Status indicator
Charging Dock:
- Size (H x W x D): 110mm x 120mm x 78mm
- Weight: 360g
- Power Supply: 115V / 240V AC
Configuration Dock:
- Size (H x W x D): 110mm x 120mm x 78mm
- Weight: 360g
- Power Supply: 115V / 240V AC
- PC Interface: USB (cable supplied)
In the Box:
- 1 x Identifier
- 1 x Vessel Bracket and a Fixings Pack
- 1 x Charging Dock
*NOTE: You will also require a configuration dock product code: 417-0047. This is used to program the unit before deployment.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Frequency: 156.025MHz – 162.025MHz
- Operational Life (Hours): 120.00
- Box Dimensions: 5"H x 10"W x 17"L WT: 3.6 lbs
