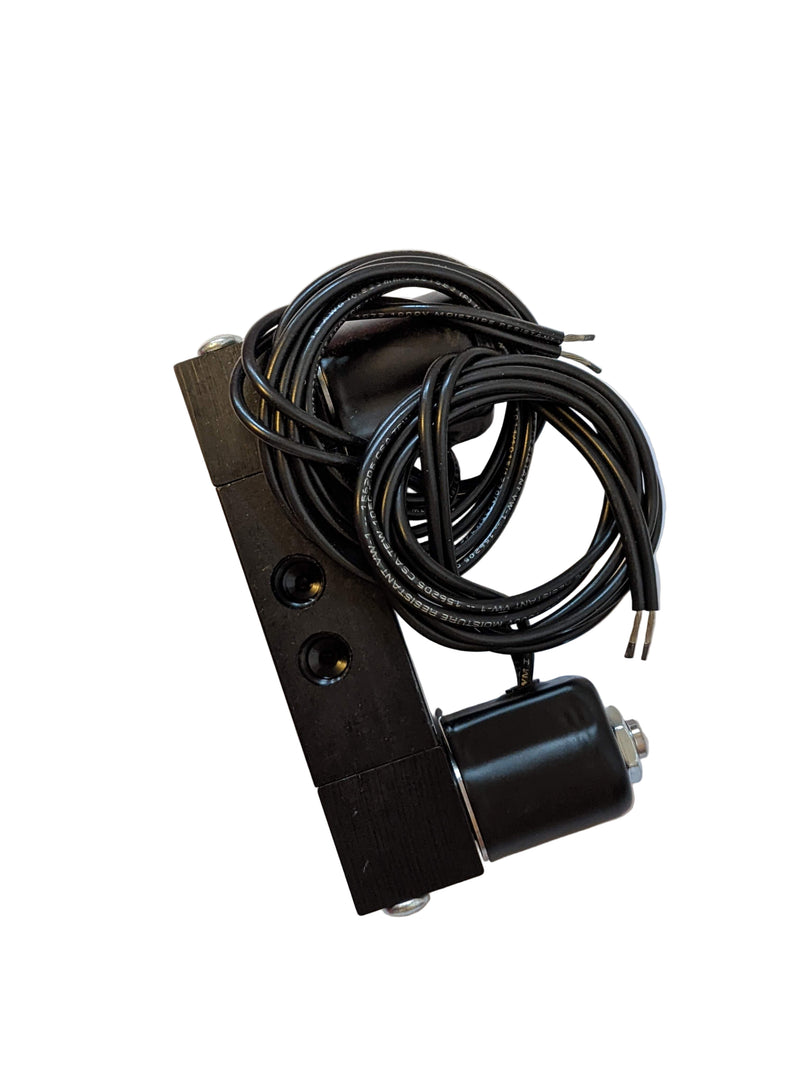

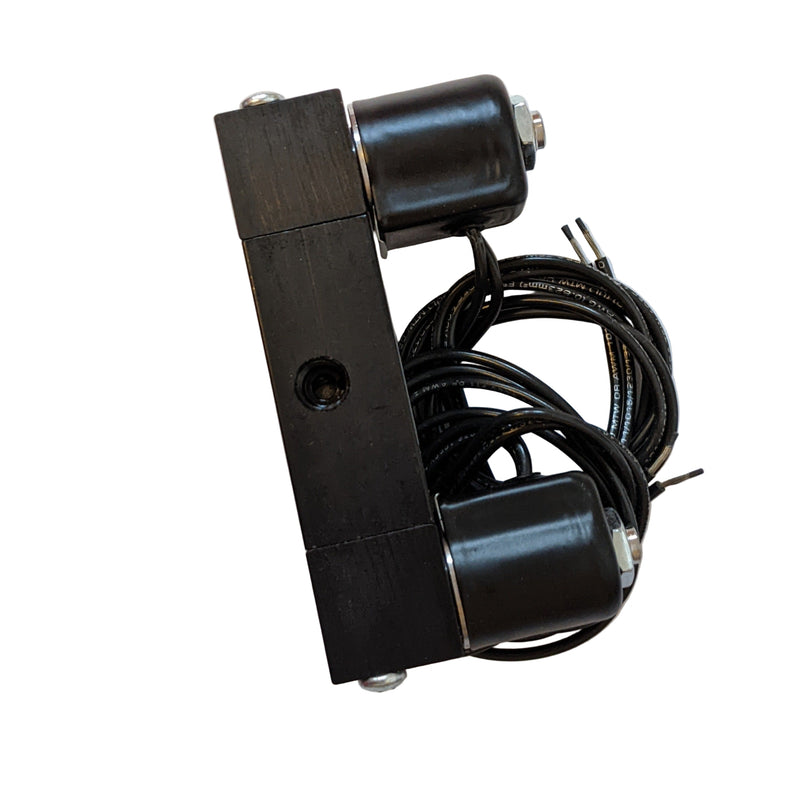

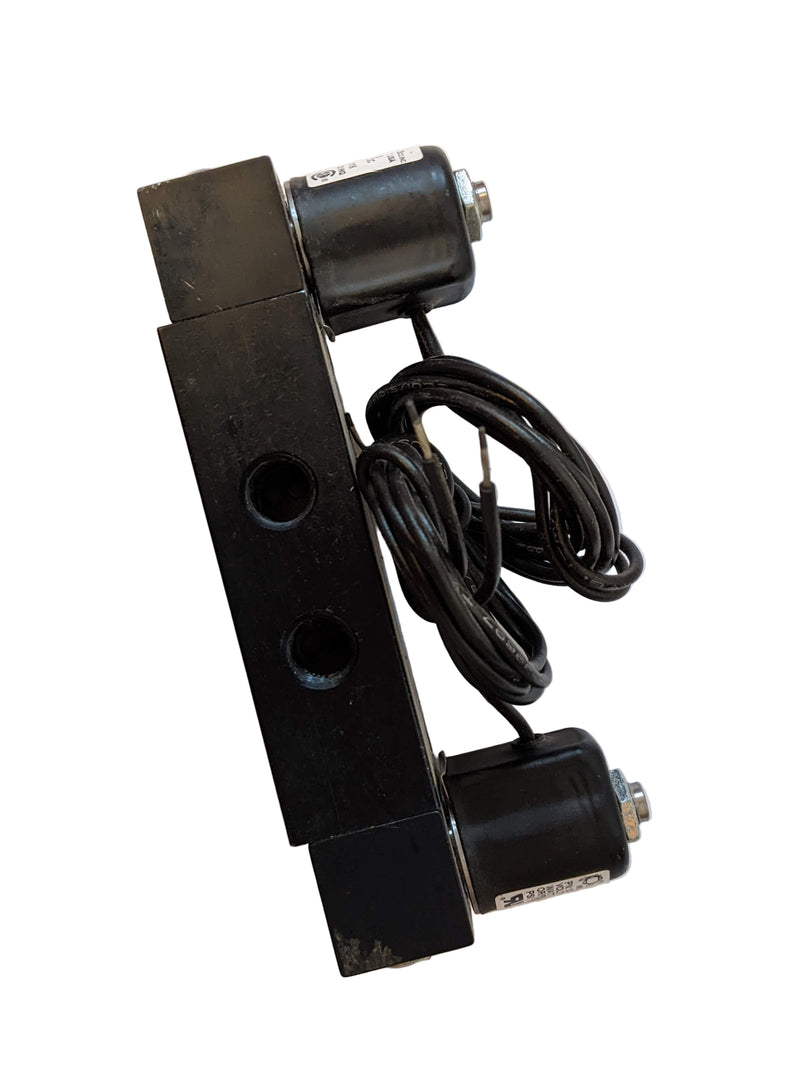

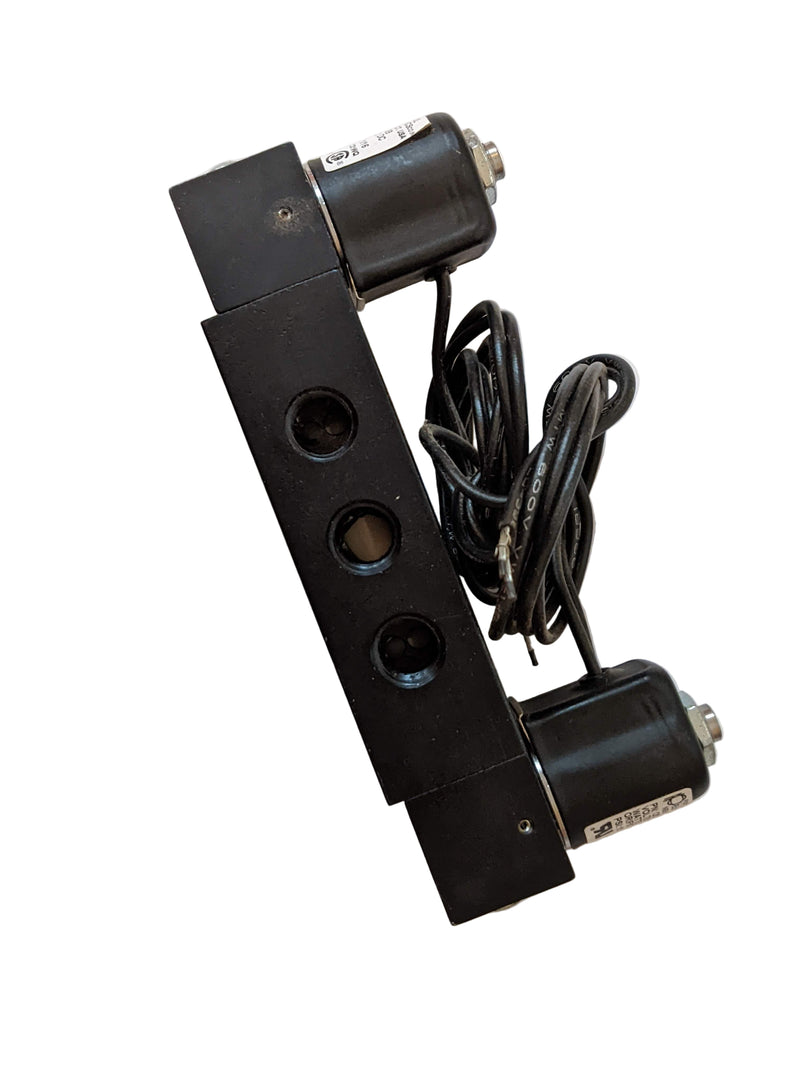

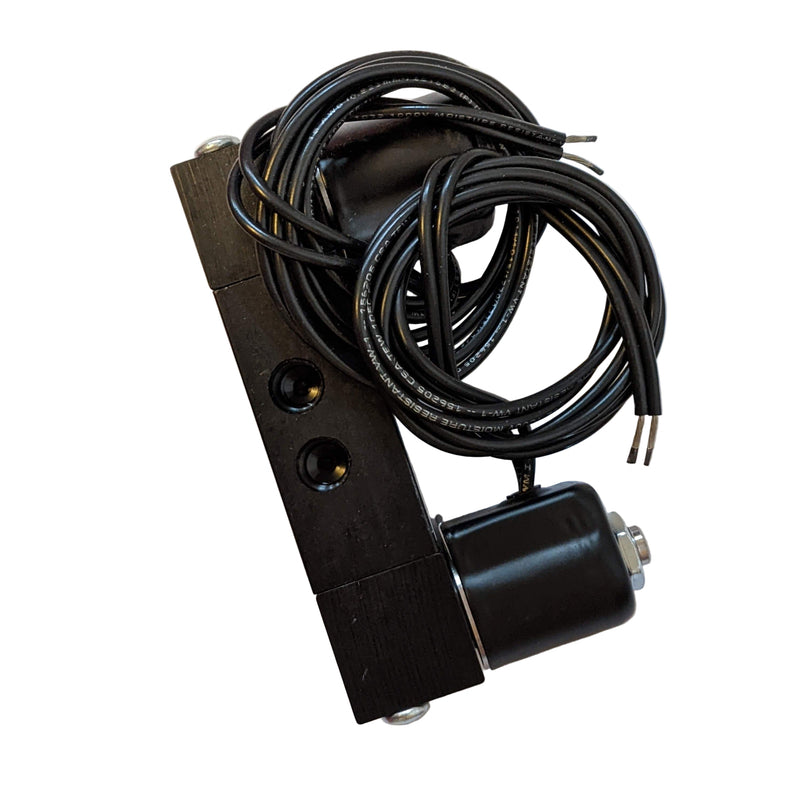

Step Solenoid
Sold out
Original price
$250.00
-
Original price
$250.00
Original price
$250.00
$250.00
-
$250.00
Current price
$250.00
Availability:
Out of stock
Availability:
Out of stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
We no longer keep these in stock. If you are in need of a step solenoid these can be purchased from a Fabco-Air distributor.
To find a distributor in your area: please go to https://fabco-air.com/, select "FIND A DISTRIBUTOR" in the top right corner and search for a distributor in your area.

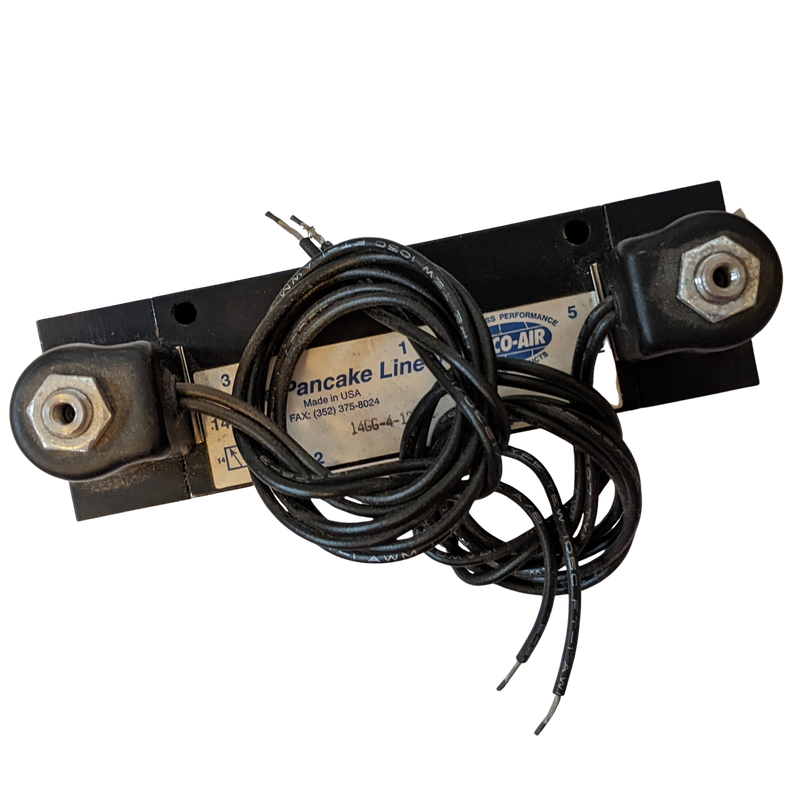

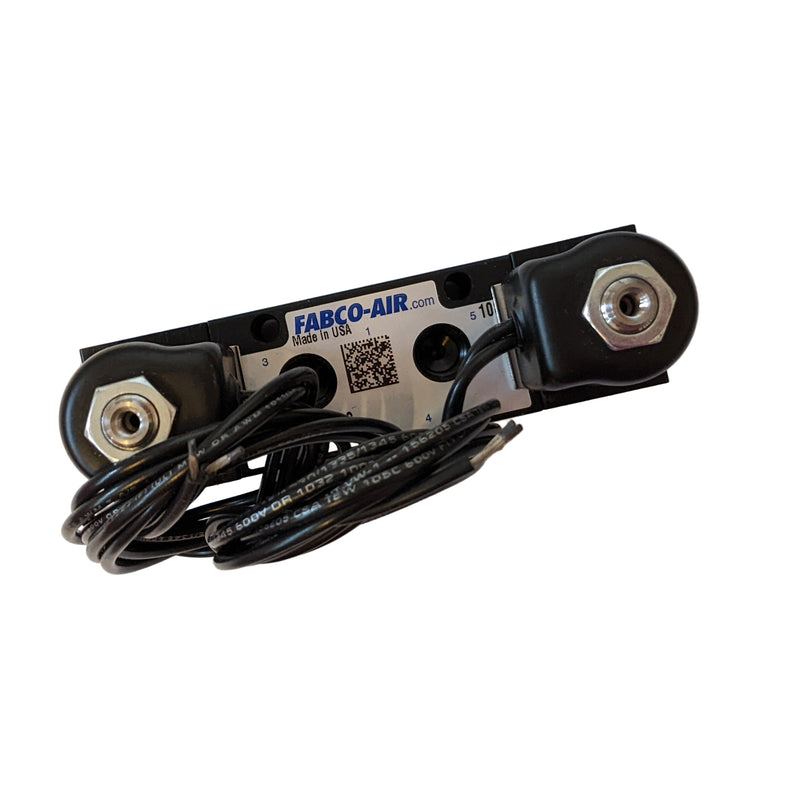

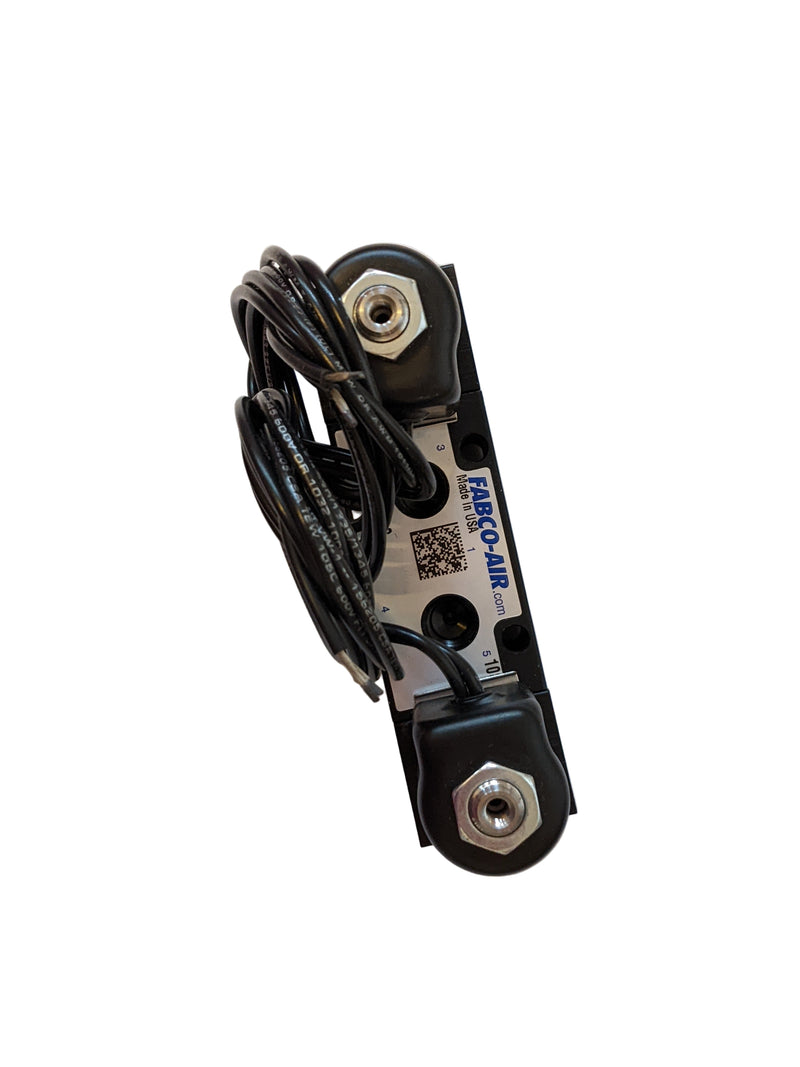

The part number is 14GG-4-12VDC.
Function: Electrically Actuated Directional Control Valve
- 4-way (5/2) double solenoid
- 5-ports 2-positions
Connection: 2 x housings with gromm. entry for solenoid wiring
- Option 1: 1/8" NPT threaded (female) pneumatic connections
- Option 2: 1/4" NPT threaded (female) pneumatic connections
Pressure:
- +20...+150psi for 1/8" connection
- +30...+150psi for 1/4" connection
