Wichard Captive Pin Bow Shackle - Diameter 10mm - 13/32" [1445W]
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

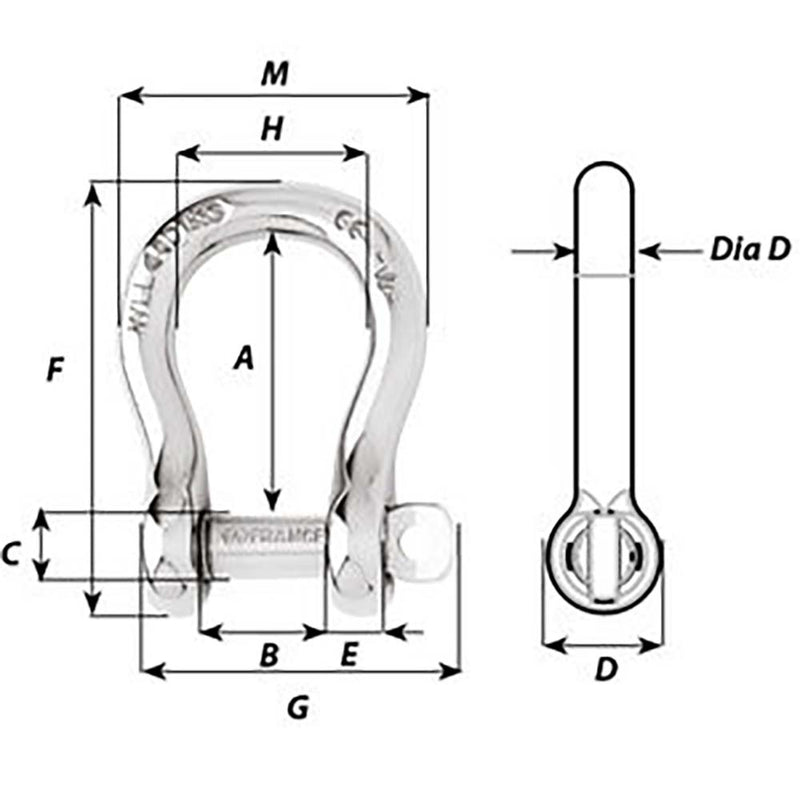

Captive Pin Bow Shackle - Diameter 10mm - 13/32"
Riggers have turned to Wichard shackles for their legendary quality, beautiful polish and smooth contours.
Drop-forged 316L stainless steel construction is a perfect blend of strength and corrosion resistance and ensures that shape remains intact at loads that meet or exceed the deformation point. These bow shackles are ideal for applications that involve loads from multiple directions.
At the thumb screw end, the elasticity of the shackle’s body locks the pin’s position into one or other of its small indentations. There is no need to worry about it accidentally coming loose due to vibrations. The pin is captive to prevent accidental loss.
Features:
- Captive pin bow shackle
- Outstanding working and breaking loads
- Single handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Technical Specifications:
- Material - 316 stainless steel grade
- Working load - 3430 (lbs)
- WLL - 2290 (lbs)
- Breaking load - 11460 (lbs)
- Weight - 0.306 (lbs)
*Sold as an Individual
Brochure (pdf)
