Description

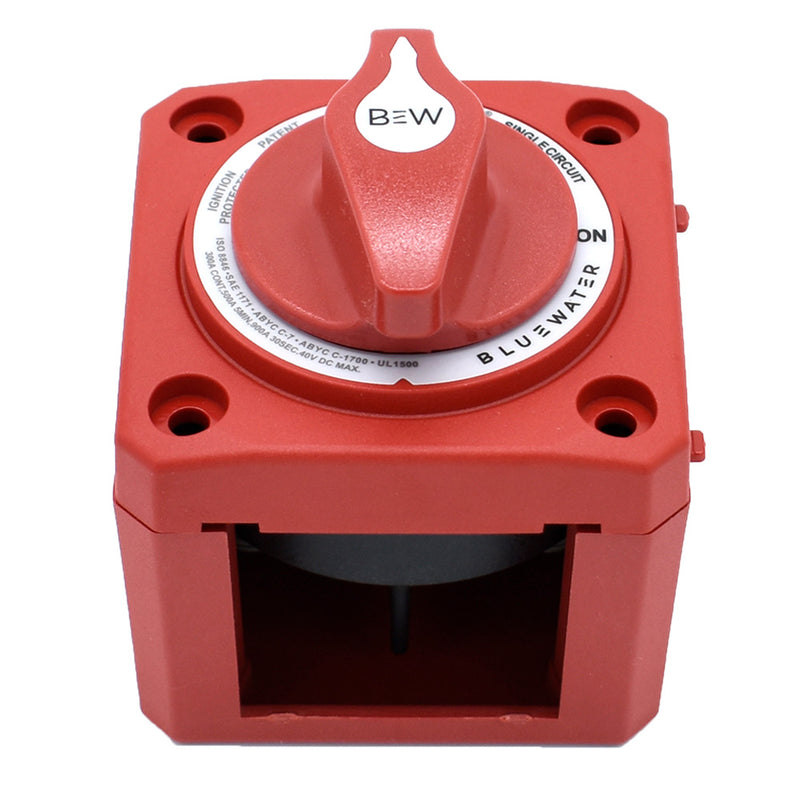

On/Off Switch Battery Switch - Surface Mount - Red
Simple, reliable, and built for tough environments, this On/Off Battery Switch provides secure control of power to a single circuit. It’s ideal for isolating batteries or equipment when not in use, helping to ensure safety and prevent unwanted battery drain.
Ignition-protected and safe for use aboard gasoline-powered boats, this switch is well-suited for both marine and RV applications. The versatile case design allows for surface, front panel, or rear panel mounting.
Constructed from all non-corrosive marine-grade metals and molded in reinforced polycarbonate, it delivers long-lasting durability in harsh conditions. Tactile knob textures allow users to confirm switch position by feel, and the included international ON/OFF label and ICON label set make circuit identification easy and intuitive.
Specifications:
- Continuous Rating: 300 Amps DC
- Intermittent Rating: 500 Amps DC (5 min)
- Cranking Rating: 900 Amps DC (30 sec)
- Max Voltage: 40VDC
- Cable Size: 4/0 AWG
Specifications:
- Continuous Amperage: 300
- Positions: 2
- Box Dimensions: 4"H x 6"W x 9"L WT: 0.7 lbs
- UPC: 810196331150
Quick Guide (pdf)
