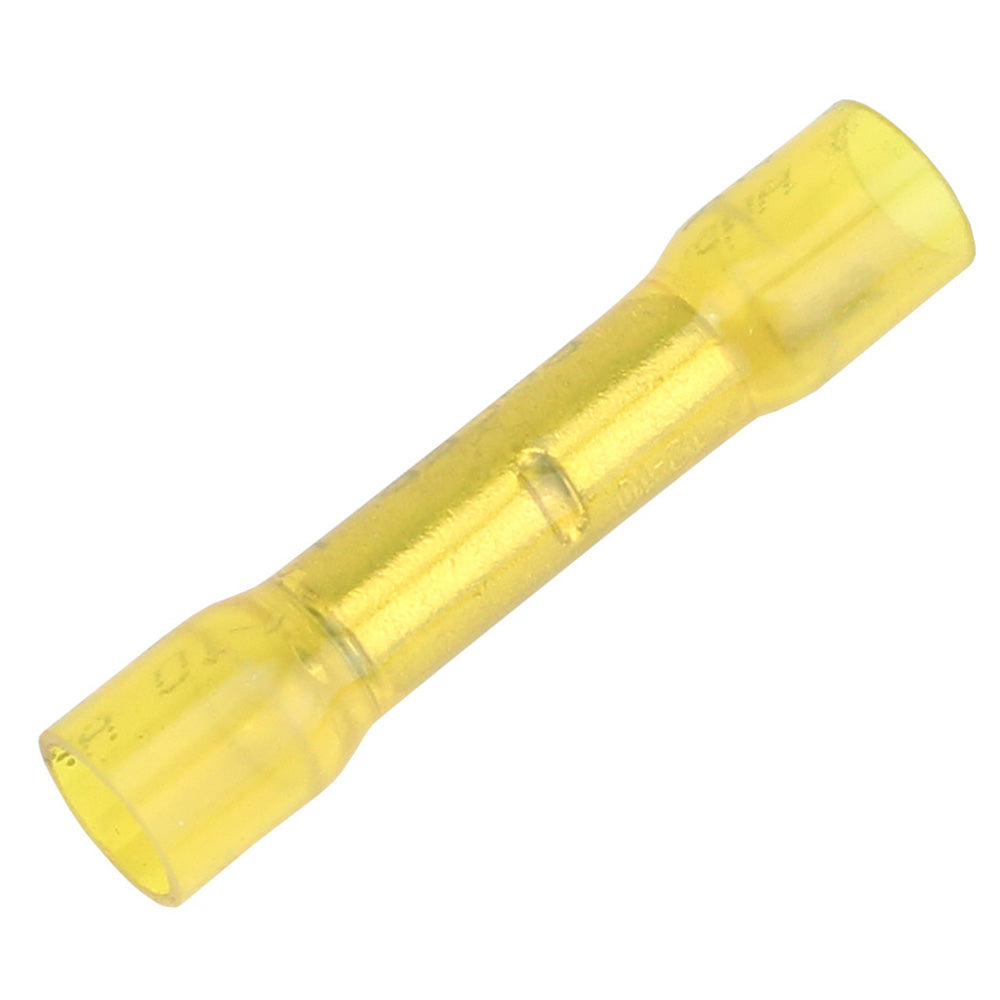

Pacer 12-10 AWG Heat Shrink Butt Connector - 25 Pack [TBSE10-25]

12-10 AWG Heat Shrink Butt Connector - 25 Pack

Butt splices are crimp connectors used to safely connect one or more wires to another wire. Step-down butt splices are meant to connect a higher-gauge wire to a lower-gauge wire. They could also be used to connect two or more smaller-gauge wires to a single wire. When selecting which type to get, pay special attention to whether they are epoxy lined or not. Many manufacturers do not line the interior of their butt splices with meltable glue. This epoxy reacts to heat and expands, creating a superior, environmentally sealed connection.

Features:

• Made from tinned copper and various insulations
• Up to 600 Volts
• Not applicable to all styles
• Operating Temp: -55°C to 125°C
• UL, CSA, RoHS Compliant

Benefits & Protections

• Impact Resistant
• Multiple Uses
• Long Term Protection
• Easy to Install

Specifications:

• Wire Range: #12-10 AWG
• Insulation Color: Yellow
• Max Wire Insulation Outer Diameter (inch): 0.28"
• Package Size: Twenty-five

Specifications:

• Gauge: 12-10 AWG
• Heat Shrink: Yes
• Package Qty: 25
• Type: Butt Connectors
• Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs
• UPC: 840248206709
