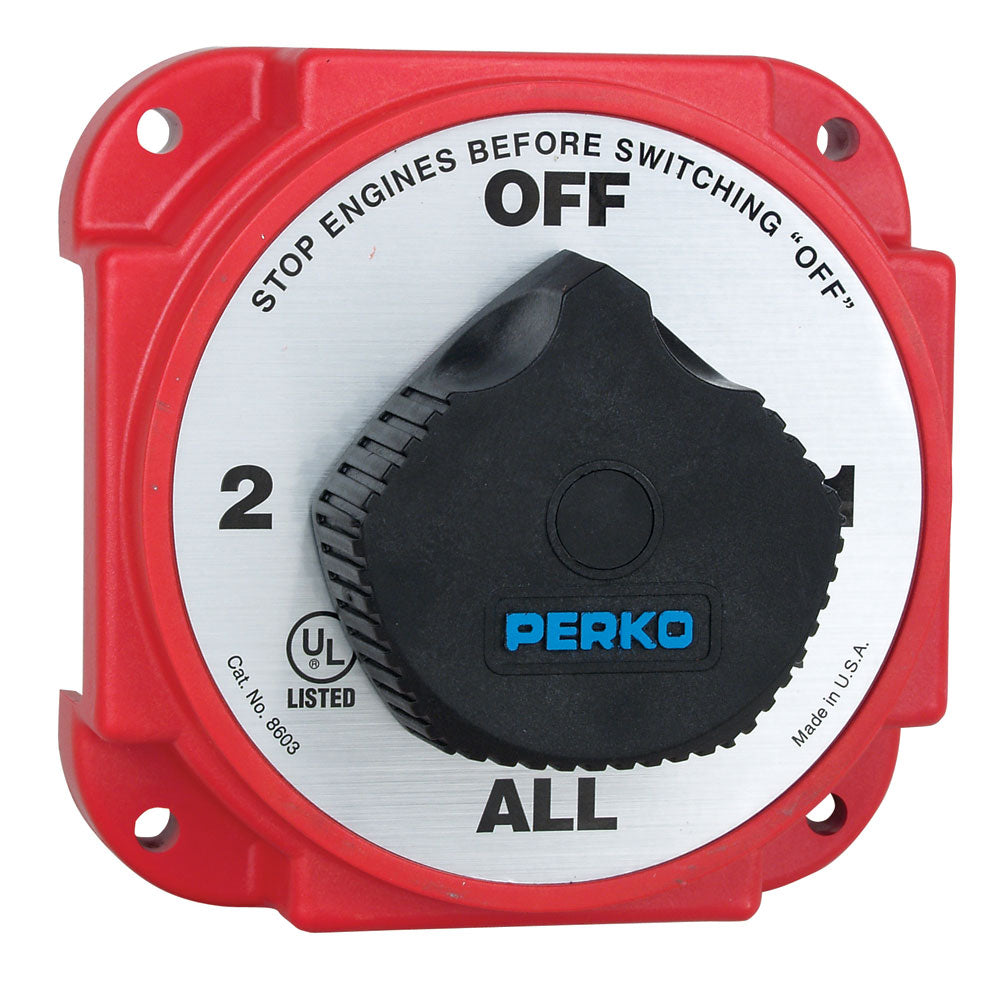

Description
- Diameter: 5-1/4"
- Depth: 2-5/8"
- Polycarbonate Body with Brass Terminals
- Ignition Protected
- For use with 6 to 32 Volt Marine Electrical Systems
- Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
- Terminal Stud Size: 5/16"
- When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running.
Specifications:
- AFD: Yes
- Lockable: No
- Positions: 2
- Continuous Amperage: 380a
- Box Dimensions: 4"H x 4"W x 8"L WT: 2.25 lbs
- UPC: 085226021558
Quick Guide (pdf)
